Tire Milling Line

Tire Milling Line
❮
❯

Tire Milling Line

Our advanced Tire Milling Line offers a complete automated system for shredding and grinding all tire types into 20-100 mesh powder. Features self-adjusting feeding and precise size control for maximum efficiency.

Performance:

  • Rubber Powder Size:
    20-100 mesh
  • Capacity:
    400~2000kg/h (Higher Capacity Can Be Customized)
  • Rubber Purity:
    ≥ 99.9%
  • Input Tire Type:
    all types of tires
  • Powder Usage:
    asphalt additives, insulation material, reclaimed rubber, new tires, etc.
  • Steel wires:
    metallurgy or metal processing industry

    • Advantage: automatically operation, self-adjust feeding speed, precise size control, high powder quality, easy to operate and maintain.
    Tire milling line mainly used for shredding and grinding tires, wire tires, steel wire tires (radial tires), and various waste rubber products or scrap, into 30-100 mesh rubber powder with all steel and fiber removed and processing capacity of 500kgs to 5 tons per hour

    Working Processing

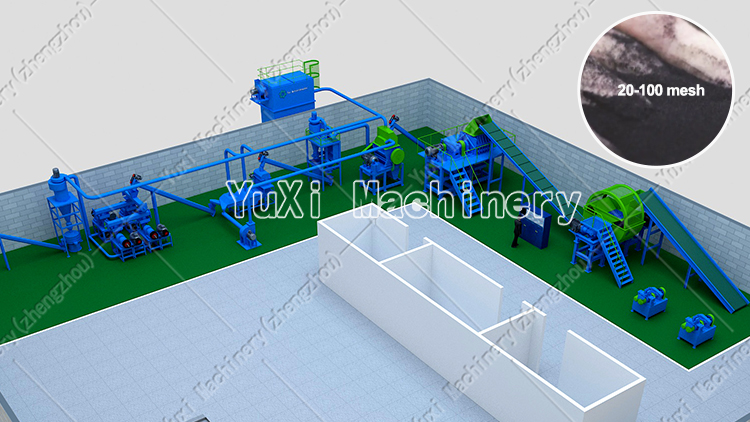

    Waste Tire→Tire Debeader→Tire Shredding Machine→Automatic Feeder →Rubber Crusher→Main Vibrating;screen→Roughing Magnetic&Separator→Vice Vibrating Machine→Concentration Magnetic;Separator→Bagging.

    1. Tire debeader uses a hydraulic system to pull out the whole bead wire of the tire.

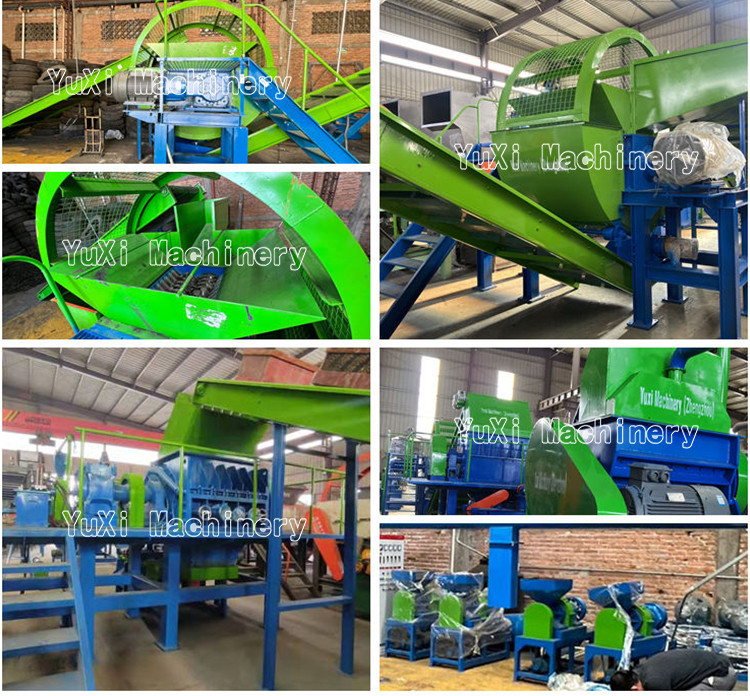

    2. Tire shredding machine:The belt conveyor carries the whole tire into the tire shredding machine, which shreds the tire into rubber
    3. The automatic feeder conveys the rubber blocks into the crusher.
    4. Rubber crusher is the main machine of the tire recycling plant. It crushes the rubber blocks to rubber powder, which falls onto the main vibrating screen.
    5. The main vibrating screen separates different sizes of rubber powder. Larger powder enters into the automatic feeder which sends the powder into the crusher for the second crush.
    6. The roughing magnetic separator separates the steel wire from the tire crumb. Steel wire falls down while crumb rubber enters into the vice vibrating screen.
    7. Vice Vibrating Screen:Rubber crumb that meets the required size enters into the concentration magnetic separator. Larger ones are conveyed back to the crusher for crushing again.
